100 KVA AC High Voltage Insulation Tester for Power Testing Transformer

Name: 100 KVA AC High Voltage Insulation Tester for Power Testing Transformer
Brand: United electrical
Price: 1 USD

China 100 KVA AC High Voltage Insulation Tester for Power Testing Transformer wholesale

Brand Name : United electrical

Model Number : YDQ

Certification : ISO9001,ISO14001,OHSAS18001

Place of Origin : Wuhan, China

MOQ : 1pcs

Price : negotiable

Delivery Time : 10 working days

Packaging Details : 1 pcs / wooden box with wrapping film

Capacity kVA : 1.5-300

No-Load Current% : <4

Resonant Voltage% : 8-10

Frequency Characteristics : Power Frequency

Transformer Type : Non-Flammable, Non-Polluting

Customized : Yes

Contact Now

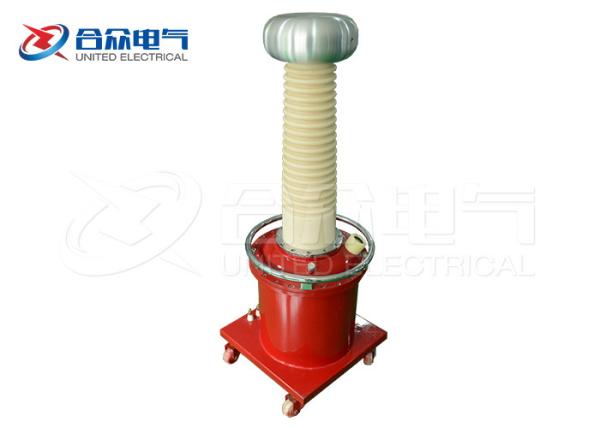

100 kVA AC High Voltage Power Testing Transformer Insulation Tester

Product Introduction:

YDQ series inflatable light test transformers are designed after our many years experiments and efforts, they are lighter 20%-60% (depend on voltage and capacity lever) compared with traditional oil-immersed light test transformer, and no oli pollution, voltage lever of single test transfomer can reach to 300kv. Due to new production process, products technology performance been well improved, especially appiled to filed work which need been frequently moved.

Product Features:

1. With small volume,light weight(40%-65% lighter than oil immersed test transformer at same lever).
2. Clean, no oil dirty, no need maintaince.
3. Not influented by severe environment, start testing no need static when moving at field work.
4. Insulation strength obviously much better than oil test transformer, smaller corona.

Product Parameters:

Model YDQ	Capacity kVA	Low Voltage		High Voltage		Measure Variable	Temperature RisedºC	Resonant Voltage%	No-load Current%	Weight kg	Dimension LWH mm
Model YDQ	Capacity kVA	Voltage V	Current A	Voltage kV	CurrentmA	Measure Variable	Temperature RisedºC	Resonant Voltage%	No-load Current%	Weight kg	Dimension LWH mm
1.5/50	1.5	200	7.5	50	30	500:1	50	10	<4	30	200275640
3/50	3	200	15	50	60	500:1	50	10	<4	35	240300690
6/50	6	200	30	50	120	500:1	50	10	<4	40	250355710
10/50	10	200	50	50	200	500:1	50	10	<4	60	260375750
15/100	15	400	37.5	100	300	500:1	50	8	<4	70	270420800
20/50	20	400	50	50	400	500:1	50	8	<4	85	285440820
30/50	30	400	75	50	600	500:1	50	8	<4	100	295386840
50/50	50	400	125	50	1000	500:1	50	8	<4	120	320416910
10/100	10	200	50	100	100	1000:1	50	10	<4	65	3504751300
15/100	15	400	37.5	100	150	1000:1	50	8	<4	85	5103901320
20/100	20	400	50	100	200	1000:1	50	8	<4	100	5404001340
30/100	30	400	75	100	300	1000:1	50	8	<4	110	5604101360
50/100	50	400	125	100	500	1000:1	50	8	<4	125	6004601410
10/150	10	200	50	150	66	1500:1	50	10	<4	90	2653801750
15/150	15	400	37.5	150	100	1500:1	50	8	<4	100	5103901800
20/150	30	400	50	150	133	1500:1	50	8	<4	110	5404151800
30/150	30	400	75	150	200	1500:1	50	8	<4	125	5604301800
50/150	50	400	125	150	333	1500:1	50	8	<4	140	6004501800
20/200	20	400	50	200	200	2000:1	50	8	<4	140	6006001900
30/200	30	400	75	200	200	2000:1	50	8	<4	160	7007001900
50/200	50	400	125	200	200	2000:1	50	8	<4	200	7507502000
50/300	50	400	125	300	300	3000:1	50	8	<4	230	7507502300
100/300	100	400	250	300	300	3000:1	55	8	<4	300	8508502500
200/300	200	400	500	300	300	3000:1	55	8	<4	350	9009002600
300/300	300	400	750	300	300	3000:1	55	8	<4	420	9009002800
Remark:can be customized

Quality Guarantee: One year quality guarantee after shipment.
